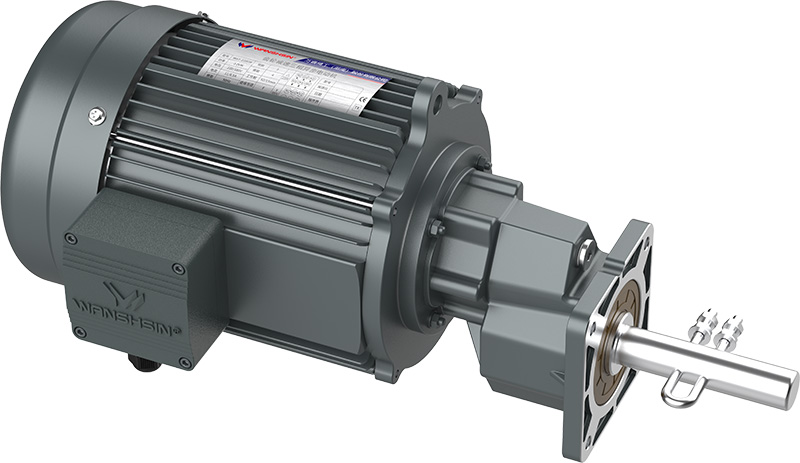

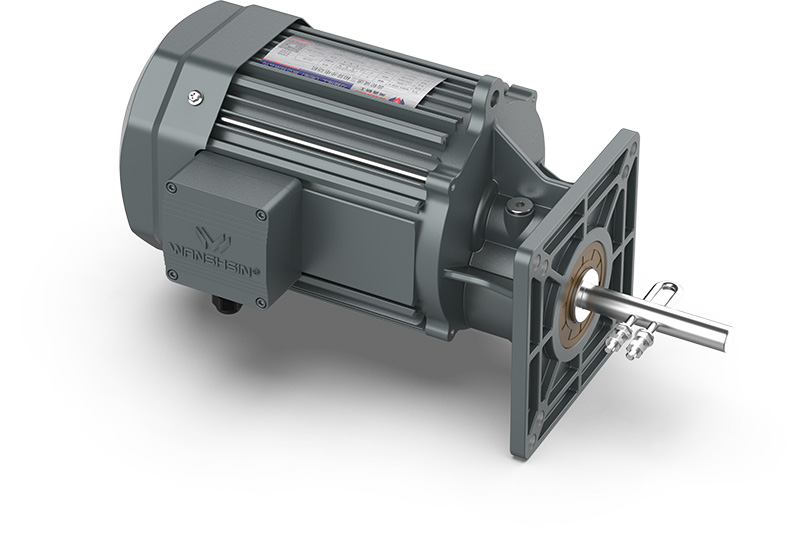

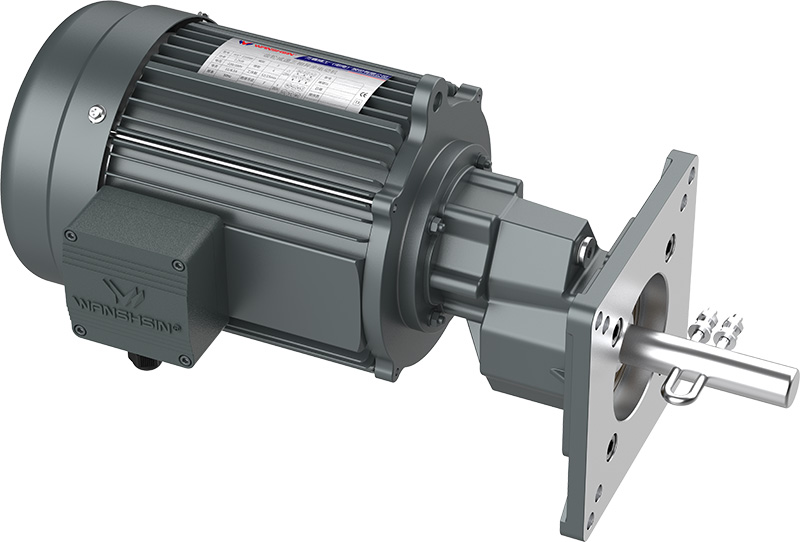

| Power | 0.55~1.5kW |
| Voltage | 220V-600V |
| Current | 1.39/0.8A |
| Frequency | 50/60Hz |
| Motor speed | 1420/1730RPM |
| Phases | Singel Phase/Three Phase |
| Poles | 4 Poles |
| Working duty | Standard S1 |
| Insulation class | F |
| Protection class | IP55 |
| Ratio | 3,4,5 |
| Output shaft diameter | 19-25mm (Support customization) |
| Parameters of motor | |||||
| POWER | POWER TYPE | CURRENT | STARTING CAPACITOR | RUNNING CAPACITOR | |
| 550W 3/4HP | Three-phase | 220V/2.6A | 380V/1.8A | 300μF | 30μF |
| Single-phase | 110V/7.6A | 220V/3.8A | |||
| 750W 1HP | Three-phase | 220V/3.6A | 380V/2.1A | 400μF | 40μF |
| Single-phase | 110V/9.0A | 220V/4.5A | |||
| 1100W 1.5HP | Three-phase | 220V/3.8A | 380V/2.2A | 300μF | 40μF |
| Single-phase | 110V/11.0A | 220V/6.0A | |||
| 1500W 2HP | Three-phase | 220V/6.8A | 380V/4.0A | 400μF | 40μF |
| Single-phase | 110V/20.0A | 220V/10.0A | |||
